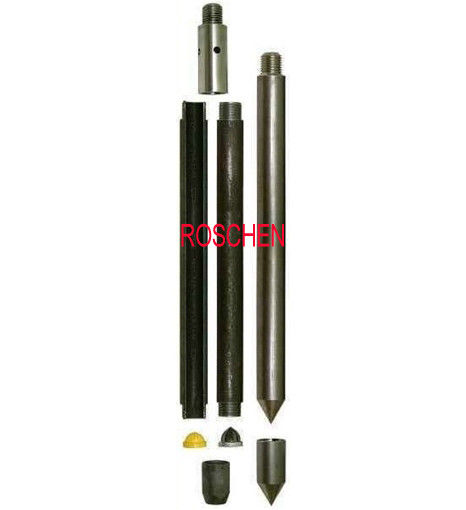

Standard Penetration Test Sampler for Surveying investigation

Standard Penetration Test Sampler for Surveying investigation

    • Standard Penetration Test Sampler for Surveying investigation
    • Standard Penetration Test Sampler for Surveying investigation
    • Standard Penetration Test Sampler for Surveying investigation
    • Standard Penetration Test Sampler for Surveying investigation
  • Standard Penetration Test Sampler for Surveying investigation

    Product Details:

    Place of Origin: Germany
    Brand Name: ROSCHEN
    Certification: ISO, API
    Model Number: 2"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Price: Negotiation
    Packaging Details: wooden /carton packing box
    Supply Ability: 100 sets
    Contact Now
    Detailed Product Description
    Series: Standard Penetration Test Sampler Sales: SPT Sampler On Sales
    Sampling: Sampling Distribution Of The Sample Size: Sample Size Determination
    Theory: Definition Of Sampling Theory Psychology: Sampling Definition Psychology
    Item: Random Sampling Definition Type: Definition Of Sampling Methods
    Meaning: Sampling Theory Basic Meaning Series No: Nonprobability Sampling Definition



    Standard Penetration Test Sampler for Surveying investigation




    Detailed products:




    Geotechnical investigation

    Standard penetration test

    Standard Penetration Test (SPT)





    The standard penetration test (SPT) is an in-situ dynamic penetration test designed to provide information on the geotechnical engineering properties of soil. The test procedure is described in the British Standard BS EN ISO 22476-3, ASTM D1586 and Australian Standards AS 1289.6.3.1. A detailed description of SPT test and procedure can be found on the geotechnical data





    Procedure



    The test uses a thick-walled sample tube, with an outside diameter of 50 mm and an inside diameter of 35 mm, and a length of around 650 mm. This is driven into the ground at the bottom of a borehole by blows from a slide hammer with a weight of 63.5 kg (140 lb) falling through a distance of 760 mm (30 in). The sample tube is driven 150 mm into the ground and then the number of blows needed for the tube to penetrate each 150 mm (6 in) up to a depth of 450 mm (18 in) is recorded. The sum of the number of blows required for the second and third 6 in. of penetration is termed the "standard penetration resistance" or the "N-value". In cases where 50 blows are insufficient to advance it through a 150 mm (6 in) interval the penetration after 50 blows is recorded. The blow count provides an indication of the density of the ground, and it is used in many empirical geotechnical engineering formulae.





    Purpose



    The main purpose of the test is to provide an indication of the relative density of granular deposits, such as sands and gravels from which it is virtually impossible to obtain undisturbed samples. The great merit of the test, and the main reason for its widespread use is that it is simple and inexpensive. The soil strength parameters which can be inferred are approximate, but may give a useful guide in ground conditions where it may not be possible to obtain borehole samples of adequate quality like gravels, sands, silts, clay containing sand or gravel and weak rock. In conditions where the quality of the undisturbed sample is suspect, e.g. very silty or very sandy clays, or hard clays, it is often advantageous to alternate the sampling with standard penetration tests to check the strength. If the samples are found to be unacceptably disturbed, it may be necessary to use a different method for measuring strength like the plate test. When the test is carried out in granular soils below groundwater level, the soil may become loosened. In certain circumstances, it can be useful to continue driving the sampler beyond the distance specified, adding further drilling rods as necessary. Although this is not a standard penetration test, and should not be regarded as such, it may at least give an indication as to whether the deposit is really as loose as the standard test may indicate.



    The usefulness of SPT results depends on the soil type, with fine-grained sands giving the most useful results, with coarser sands and silty sands giving reasonably useful results, and clays and gravelly soils yielding results which may be very poorly representative of the true soil conditions. Soils in arid areas, such as the Western United States, may exhibit natural cementation. This condition will often increase the standard penetration value.

    The SPT is used to provide results for empirical determination of a sand layer's susceptibility to earthquake liquefaction, based on research performed by Harry Seed, T. Leslie Youd, and others.





    Correlation with Soil Mechanical Properties



    Despite its many flaws, it is usual practice to correlate SPT results with soil properties relevant for geotechnical engineering design. The reason being that SPT results are often the only test results available, therefore the use of direct correlations has become common practice in many countries.

    Different correlations are proposed for granular and cohesive soils.





    Geotechnical investigation



    Geotechnical investigations are performed by geotechnical engineers or engineering geologists to obtain information on the physical properties of soil and rock around a site to design earthworks and foundations for proposed structures and for repair of distress to earthworks and structures caused by subsurface conditions. This type of investigation is called a site investigation.[1] Additionally, Geotechnical investigations are also used to measure the thermal resistivity of soils or backfill materials required for underground transmission lines, oil and gas pipelines, radioactive waste disposal, and solar thermal storage facilities. A geotechnical investigation will include surface exploration and subsurface exploration of a site. Sometimes, geophysical methods are used to obtain data about sites. Subsurface exploration usually involves soil sampling and laboratory tests of the soil samples retrieved.



    Surface exploration can include geologic mapping, geophysical methods, and photogrammetry, or it can be as simple as a geotechnical professional walking around on the site to observe the physical conditions at the site.



    To obtain information about the soil conditions below the surface, some form of subsurface exploration is required. Methods of observing the soils below the surface, obtaining samples, and determining physical properties of the soils and rocks include test pits, trenching (particularly for locating faults and slide planes), boring, and in situ tests.





    Soil sampling



    Borings come in two(2) main varieties, large-diameter and small-diameter. Large-diameter borings are rarely used due to safety concerns and expense, but are sometimes used to allow a geologist or engineer to visually and manually examine the soil and rock stratigraphy in-situ. Small-diameter borings are frequently used to allow a geologist or engineer examine soil or rock cuttings or to retrieve samples at depth using soil samplers, and to perform in-place soil tests.

    Soil samples are often categorized as being either "disturbed" or "undisturbed;" however, "undisturbed" samples are not truly undisturbed. A disturbed sample is one in which the structure of the soil has been changed sufficiently that tests of structural properties of the soil will not be representative of in-situ conditions, and only properties of the soil grains (e.g., grain size distribution, Atterberg limits, and possibly the water content) can be accurately determined. An undisturbed sample is one where the condition of the soil in the sample is close enough to the conditions of the soil in-situ to allow tests of structural properties of the soil to be used to approximate the properties of the soil in-situ.



    Offshore soil collection introduces many difficult variables. In shallow water, work can be done off a barge. In deeper water a ship will be required. Deepwater soil samplers are normally variants of Kullenberg-type samplers, a modification on a basic gravity corer using a piston (Lunne and Long, 2006). Seabed samplers are also available, which push the collection tube slowly into the soil.





    Soil samplers



    Soil samples are taken using a variety of samplers; some provide only disturbed samples, while others can provide relatively undisturbed samples.

    Shovel. Samples can be obtained by digging out soil from the site. Samples taken this way are disturbed samples.



    Trial Pits are relatively small hand or machine excavated tranches used to determine groundwater levels and take disturbed samples from.

    Hand/Machine Driven Auger. This sampler typically consists of a short cylinder with a cutting edge attached to a rod and handle. The sampler is advanced by a combination of rotation and downward force. Samples taken this way are disturbed samples.



    Continuous Flight Auger. A method of sampling using an auger as a corkscrew. The auger is screwed into the ground then lifted out. Soil is retained on the blades of the auger and kept for testing. The soil sampled this way is considered disturbed.



    Split-spoon / SPT Sampler. Utilized in the 'Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils' (ASTM D 1586[2]). This sampler is typically a 18"-30" long, 2.0" outside diameter (OD) hollow tube split in half lengthwise. A hardened metal drive shoe with a 1.375" opening is attached to the bottom end, and a one-way valve and drill rod adapter at the sampler head. It is driven into the ground with a 140-pound (64 kg) hammer falling 30". The blow counts (hammer strikes) required to advance the sampler a total of 18" are counted and reported. Generally used for non-cohesive soils, samples taken this way are considered disturbed.



    Modified California Sampler. Utilized in the 'Standard Practice for Thick Wall, Ring-Lined, Split Barrel, Drive Sampling ofSoils1' (ASTM D 3550). Similar in concept to the SPT sampler, the sampler barrel has a larger diameter and is usually lined with metal tubes to contain samples. Samples from the Modified California Sampler are considered disturbed due to the large area ratio of the sampler (sampler wall area/sample cross sectional area).



    Shelby Tube Sampler. Utilized in the 'Standard Practice for Thin-Walled Tube Sampling of Soils for Geotechnical Purposes' (ASTM D 1587[3]). This sampler consists of a thin-walled tube with a cutting edge at the toe. A sampler head attaches the tube to the drill rod, and contains a check valve and pressure vents. Generally used in cohesive soils, this sampler is advanced into the soil layer, generally 6" less than the length of the tube. The vacuum created by the check valve and cohesion of the sample in the tube cause the sample to be retained when the tube is withdrawn. Standard ASTM dimensions are; 2" OD, 36" long, 18 gauge thickness; 3" OD, 36" long, 16 gauge thickness; and 5" OD, 54" long, 11 gauge thickness. It should be noted that ASTM allows other diameters as long as they are proportional to the standardized tube designs, and tube length is to be suited for field conditions. Soil sampled in this manner is considered undisturbed.



    Piston samplers. These samplers are thin-walled metal tubes which contain a piston at the tip. The samplers are pushed into the bottom of a borehole, with the piston remaining at the surface of the soil while the tube slides past it. These samplers will return undisturbed samples in soft soils, but are difficult to advance in sands and stiff clays, and can be damaged (compromising the sample) if gravel is encountered. The Livingstone corer, developed by D. A. Livingstone, is a commonly used piston sampler. A modification of the Livingstone corer with a serrated coring head allows it to be rotated to cut through subsurface vegetable matter such as small roots or buried twigs.



    Pitcher Barrel sampler. This sampler is similar to piston samplers, except that there is no piston. There are pressure-relief holes near the top of the sampler to prevent pressure buildup of water or air above the soil sample.





    In-situ tests



    A Standard Penetration Test (SPT) is an in-situ dynamic penetration test designed to provide information on the properties of soil, while also collecting a disturbed soil sample for grain-size analysis and soil classification.



    Dynamic Cone Penetrometer (DCP) is an insitu test in which a weight is manually lifted and dropped on a cone which penetrates the ground. the number of mm per hit are recorded and this is used to estimate certain soil properties. This is a simple test method and usually needs backing up with lab data to get a good correlation.

    A Cone Penetration Test (CPT) is performed using an instrumented probe with a conical tip, pushed into the soil hydraulically at a constant rate. A basic CPT instrument reports tip resistance and shear resistance along the cylindrical barrel. CPT data has been correlated to soil properties. Sometimes instruments other than the basic CPT probe are used, including:



    CPTu - Piezocone Penetrometer. This probe is advanced using the same equipment as a regular CPT probe, but the probe has an additional instrument which measures the groundwater pressure as the probe is advanced.



    SCPTu - Seismic Piezocone Penetrometer. This probe is advanced using the same equipment as a CPT or CPTu probe, but the probe is also equipped with either geophones or accelerometers to detect shear waves and/or pressure waves produced by a source at the surface.



    Full Flow Penetrometers - T-bar, Ball, and Plate: These probes are used in extremely soft clay soils (such as sea-floor deposits) and are advanced in the same manner as the CPT. As their names imply, the T-bar is a cylindrical bar attached at right angles to the drill string forming what look likes a T, the ball is a large sphere, and the plate is flat circular plate. In soft clays, soil flows around the probe similar to a viscous fluid. The pressure due to overburden stress and pore water pressure is equal on all sides of the probes (unlike with CPT's), so no correction is necessary, reducing a source of error and increasing accuracy. Especially desired in soft soils due to the very low loads on the measuring sensors. Full flow probes can also be cycled up and down to measure remolded soil resistance. Ultimately the geotechnical professional can use the measured penetration resistance to estimate undrained and remolded shear strengths.



    HPT (Helical Probe Test) Soil exploration and compaction testing by the helical probe test (HPT) has become popular for providing a quick and accurate method of determining soil properties at relatively shallow depths. The HPT test is attractive for in-situ footing inspections because it is lightweight and can be conducted quickly by one person. During testing, the probe is driven to the desired depth and the torque required to turn the probe is used as a measure to determine the soil's characteristics. Preliminary ASTM testing has determined that the HPT method correlates well to standard penetration testing (SPT) and Cone Penetration Testing (CPT) with empirical calibration.



    Flat Plate Dilatometer Test (DMT) is a flat plate probe often advanced using CPT rigs, but can also be advanced from conventional drill rigs. A diaphragm on the plate applies a lateral force to the soil materials and measures the strain induced for various levels of applied stress at the desired depth interval.


    In-situ gas tests can be carried out in the boreholes on completion and in probe holes made in the sides of the trial pits as part of the site investigation. Testing is normally with a portable meter, which measures the methane content as its percentage volume in air. The corresponding oxygen and carbon dioxide concentrations are also measured. A more accurate method used to monitor over the longer term, consists of gas monitoring standpipes should be installed in boreholes. These typically comprise slotted uPVC pipework surrounded by single sized gravel. The top 0.5m to 1.0m of pipework is usually not slotted and is surrounded by bentonite pellets to seal the borehole. Valves are fitted and the installations protected by lockable stopcock covers normally fitted flush with the ground. Monitoring is again with a portable meter and is usually done on a fortnightly or monthly basis.





    Laboratory tests



    A wide variety of laboratory tests can be performed on soils to measure a wide variety of soil properties. Some soil properties are intrinsic to the composition of the soil matrix and are not affected by sample disturbance, while other properties depend on the structure of the soil as well as its composition, and can only be effectively tested on relatively undisturbed samples. Some soil tests measure direct properties of the soil, while others measure "index properties" which provide useful information about the soil without directly measuring the property desired.





    Atterberg limits



    The Atterberg limits define the boundaries of several states of consistency for plastic soils. The boundaries are defined by the amount of water a soil needs to be at one of those boundaries. The boundaries are called the plastic limit and the liquid limit, and the difference between them is called the plasticity index. The shrinkage limit is also a part of the Atterberg limits. The results of this test can be used to help predict other engineering properties. [4]

    California bearing ratio



    ASTM D 1883. A test to determine the aptitude of a soil or aggregate sample as a road subgrade. A plunger is pushed into a compacted sample, and its resistance is measured. This test was developed by Caltrans, but it is no longer used in the Caltrans pavement design method. It is still used as a cheap method to estimate the resilient modulus.[5][6]





    Direct shear test



    ASTM D3080. The direct shear test determines the consolidated, drained strength properties of a sample. A constant strain rate is applied to a single shear plane under a normal load, and the load response is measured. If this test is performed with different normal loads, the common shear strength parameters can be determined.[7]





    Expansion Index test



    This test uses a remolded soil sample to determine the Expansion Index (EI), an empirical value required by building design codes, at a water content of 50% for expansive soils, like expansive clays.[8]



    Hydraulic conductivity tests

    There are several tests available to determine a soil's hydraulic conductivity. They include the constant head, falling head, and constant flow methods. The soil samples tested can be any type include remolded, undisturbed, and compacted samples.[9]



    Oedometer test

    This can be used to determine consolidation (ASTM D2435) and swelling (ASTM D4546) parameters.



    Particle-size analysis

    This is done to determine the soil gradation. Coarser particles are separated in the sieve analysis portion, and the finer particles are analyzed with a hydrometer. The distinction between coarse and fine particles is usually made at 75 μm. The sieve analysis shakes the sample through progressively smaller meshes to determine its gradation. The hydrometer analysis uses the rate of sedimentation to determine particle gradation.



    R-Value test

    California Test 301 This test measures the lateral response of a compacted sample of soil or aggregate to a vertically applied pressure under specific conditions. This test is used by Caltrans for pavement design, replacing the California bearing ratio test.



    Soil compaction tests

    Standard Proctor (ASTM D698), Modified Proctor (ASTM D1557), and California Test 216. These tests are used to determine the maximum unit weight and optimal water content a soil can achieve for a given compaction effort.



    Soil suction tests

    ASTM D5298.

    Triaxial shear tests

    This is a type of test that is used to determine the shear strength properties of a soil. It can simulate the confining pressure a soil would see deep into the ground. It can also simulate drained and undrained conditions.



    Unconfined compression test

    ASTM D2166. This test compresses a soil sample to measure its strength. The modifier "unconfined" contrasts this test to the triaxial shear test.



    Water content

    This test provides the water content of the soil, normally expressed as a percentage of the weight of water to the dry weight of the soil.





    Geophysical exploration



    Geophysical methods are used in geotechnical investigations to evaluate a site's behavior in a seismic event. By measuring a soil's shear wave velocity, the dynamic response of that soil can be estimated.[11] There are a number of methods used to determine a site's shear wave velocity:

    Crosshole method

    Downhole method (with a seismic CPT or a substitute device)

    Surface wave reflection or refraction

    Suspension logging (also known as P-S logging or Oyo logging)

    Spectral analysis of surface waves (SASW)

    Modal Analysis of Surface waves (MASW)

    Reflection microtremor (ReMi)


    Keywords:

    SPT hammer
    SPT hammer types
    SPT hammer efficiency
    SPT hammer weight
    SPT hammer anvil
    SPT hammer calibration
    SPT hammer efficiency factors
    SPT hammer energy measurements
    spt hammer types
    automatic spt hammer
    spt hammer weight
    spt hammer calibration
    spt n values
    spt energy
    spt correction
    automatic hammer
    Standard Penetration Test
    SPT Hammer Calibration
    Spt Hammer, Spt Hammer Suppliers and Manufacturers
    SPT Hammer Calibration
    SPT Automatic Hammmer
    Drilling World
    Automatic SPT Hammer
    SPT: Standard Penetration Test Energy Calibration
    Standard penetration test
    CME Automatic Hammer Operations Bulletin DSO-99-03
    Evaluation of SPT energy for Donut and Safety hammers
    SPT Hammer Energy Ratio versus Drop Height
    SPT Energy Measurements: Manual vs. Automatic Hammer
    Standard Penetration Test (SPT) Correction
    Auto Standard Penetration Test (SPT) Hammers
    SPT Automatic Drop Hammer: Environmental, Geophysical
    Auto Hammer
    Energy Efficiency and Rod Length Effect in SPT Drilling
    Evaluation of SPT Hammer Energy Variability
    NOTES on the STANDARD PENETRATION TEST
    UT100 and SPT Hammers
    Drilling Supplies
    Spt Automatic Trip Hammer, Spt Tools
    standard penetration test, SPT
    Standard Penetration Testing Tools
    Geoprobe Systems
    Automatic Spt Hammer
    Hydraulic Spt Hammer, Hydraulic Spt Hammer
    Calibration
    Geotechnical Drilling
    Automatic SPT Hammer,SPT Hammer Types manufacturer
    Drilling Services,SPT Calibrations
    NCDOT SPT HAMMER ENERGY MEASUREMENT
    Hydraulic Spt Hammer, Hydraulic Spt Hammer
    SPT Hammer Energy Ratio versus Drop Height
    SPT hammer, high quality Manufacturers,Suppliers
    SPT Automatic Hammer Efficiency Revisited
    SPT Hammer, SPT Automatic Trip Hammer
    SPT AUTO TRIP HAMMER - KUVAWALA CORE DRILL
    Standard Test Method for Standard Penetration Test (SPT soil sampling)
    Soil Sampling Tools - Drilling World
    SPT Hammer Energy Ratio versus Drop Height
    Spt Hammer - Spt Hammer Manufacturers, Suppliers
    1.8m - 2.6m Automatic SPT Hammer Standard Penetration
    Effect of SPT Hammer Energy Efficiency in the Bearing
    Spt Hammer Complete
    Evaluation of SPT energy for Donut and Safety hammers
    GRL Services SPT Hammer Calibration
    DH66 Automatic Drop Hammer
    Automatic SPT Hammer,Soil testing engineering
    Geotechnical Drilling
    Mobile Drill Tooling Catalog UPDATED 2015 Reduced
    SPT Hammer Energy Analyser
    DH66 Automatic Drop Hammer
    Spt Hammer Exporters, Spt Hammer Selling Leads
    China SPT Hammer - China Spt Hammer, Drilling Tools
    EVALUATION OF THE CONE PENETROMETER TEST FOR SPT .
    China Soil Testing Spt Automatic Trip Hammer Complete
    SPT Hammer Energy Measurement
    SPT Hammer Energy Measurements
    STANDARD PENETRATION TEST
    Subsurface Exploration Using the Standard Penetration Test and the Cone Penetrometer Test
    Subsurface Exploration Using the Standard Penetration Test
    Site Exploration, Site Characterization, Subsurface Exploration, Drilling, Standard Penetration Test, Cone Penetrometer
    The Standard Penetration Test (SPT) and Cone Penetrometer Test (CPT) have become industry standards for subsurface geotechnical investigations using small diameter (<8-in. [20-cm]) borings and soundings. Both procedures have evolved over a period of 100 and 70 years, respectively, and have been adopted as ASTM standards. Each procedure has certain advantages over the other, but both can elicit incorrect data under particular subsurface conditions that are often overlooked, depending on the experience of field personnel operating or logging the tests. This paper seeks to explain the operative assumptions employed in both procedures, highlight the various corrections that are commonly employed, and warn the reader of common errors in interpretation.
    The article concludes by stating that, under most conditions, the joint employment of SPT and CPT together has the greatest potential for characterizing sites correctly.
    ASTM D1586 - 11
    Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils
