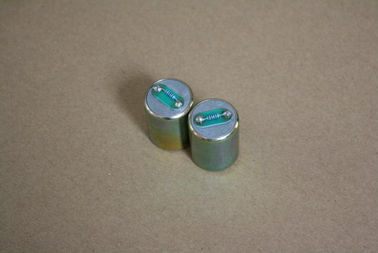

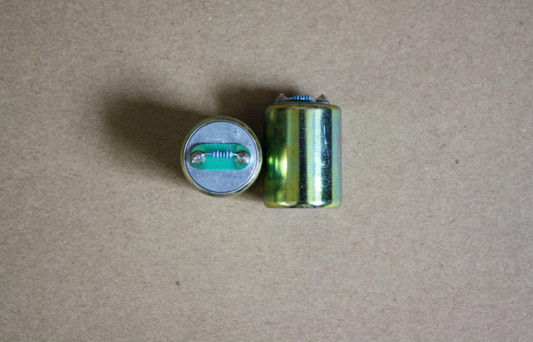

High precision low distortion High frequency Geophone Core GD-60

High precision low distortion High frequency Geophone Core GD-60

    • High precision low distortion High frequency Geophone Core GD-60
    • High precision low distortion High frequency Geophone Core GD-60
  • High precision low distortion High frequency Geophone Core GD-60

    Product Details:

    Place of Origin: China
    Brand Name: GUANGDA
    Model Number: According to the specifications

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiation
    Packaging Details: Carton (the size is determined by the number of purchases)
    Delivery Time: The decision by the purchase quantity, generally for 5 days after receipt of payment
    Payment Terms: FOB
    Supply Ability: 10000
    Contact Now
    Detailed Product Description

    High frequency Geohones Geophone Core GD-60





    Fast detailed description:

    1 Reasonable design

    2 wide frequency band,

    3 signal received is plentiful

    4 low distortion

    5 property superiority and stable

    6 quota precise

    7 Applied to all precise seismic exploration test methode





    Description:



    GD-XXS Series Digital Geophone,Reasonable design,wide frequency band,signal received is plentiful.low distortion,property superiority and stable,quota precise.Applied to all precise seismic exploration test methode.





    Application:



    petroleum exploration





    Specifications:





    Parameter/Mode

    GD-80

    GD-60

    GD-100

    Natural frequency(Hz)

    80±5%

    60±5%

    100±5%

    Damping

    0.49±10%

    0.65±10%

    0.55±10%

    Damping with shunt resistor







    Sensitivity(V/m/s)

    50±10%

    55±10%

    50±10%

    Sensitivity with shunt resistor (V/m/s)







    Coil resistance (Ω)

    940±5%

    940±5%

    1084±3.5%

    Closed-circuit resistance(Ω)







    Shunt resistance(Ω)







    Distortion

    ≤0.2%

    ≤0.2%

    ≤0.2%

    Spurious frequency (Hz)







    Moving mass(g)

    11.5

    11.5

    7.6

    Maximum motion (mm)

    1

    1

    1

    Allows tilt angle(°)

    90

    90

    90

    Diameter(mm)

    27.5

    27.5

    27.5

    Height(mm)

    33

    33

    33

    Quality(g)

    100

    100

    100

    Operating Temperature(℃)

    -40~100

    -40~100

    -40~100

    Warranty period (year)

    3

    3

    3





    Competitive advantage:



    Full range of products,Multiple types,Good quality,Direct manufacturers low price,A perfect after sale service



    3. Universal product information

    Place of Origin:

    CHINA

    Brand Name:

    GUANGDA

    Certification:



    Model Number:

    According to the specifications

    4. roduct commerce clause

    Minimum Order Quantity:

    2 pieces

    Price:



    Packaging Details:

    Carton (the size is determined by the number of purchases)

    Delivery Time:

    The decision by the purchase quantity, generally for 5 days after receipt of payment

    Payment Terms:

    FOB

    Supply Ability:

    10000
