Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine

Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine

  • Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine
  • Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine
  • Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine
  • Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine
Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine
Product Details:
Place of Origin: China
Brand Name: Gaoxin
Certification: ISO 9001: 2008
Model Number: GX-8003
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 15 working days
Payment Terms: FOB Shenzhen, L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Material: 304# Stainless Steel Color: Grey
Type: Vertical Type Capacity: 5,10,20,50,100,200,300kg
Valid Stroke: 800mm Display: LCD Display
Motor: AC Motor
High Light:

Tensile Test Equipment

,

Tensile Testing Machine

MINI Desktop Economic Universal Tensile Compression StrengthTester Testing Machine





1. Quick Details



Alternative name

Table type tensile strength tester With Serve Motor

Function

Test for tensile strength, elongation, extension, and peeling, tearing

strength of leather, fabrics, shoes...

Type

Table type economical test machine

Weight

70kg

Volume

50*36*183CM (W×D×H)

Corresponding test standard

ASTM D1790,D1593,JIS K6545,HB-T2877, CNS-7705





2. Description



tensile testing equipment with Servo motor  is widely used in controlling the quality; Rubber, Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials...

Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.



3. Features

(1) Elegant and nice structure design

(2) Precise leading screw

(3) Advanced controlling system- data sampling and drive control by computer

(4) Powerful software function- fully opening testing software. Users can finished all mechanics test

items by this existing software, but also can edit exclusive test method according to specifical requirement.(5) Excellent test accuracy - better 1 degree,  1/100,000 strength resolution; resolution of deformation

measurement is 0.001mm.





4. Specifications



Model

GX-8003

Load range

5-200kg

Unit exchange

kgf,gf,Ton,lbf,N,kN

Accuracy of load

± 2%

Load resolution

1/10,000

Deformation measuring resolution

0.001mm

Action

Tensile and compression function

Load Magnifying Rate

Variable speed

Max. tensile space

800mm (mot including fixture)

Displacement resolution

0.01mm

Test speed range

25~500mm/min

Input mode of speed

Knob

Stop mode

Specimen damage or set lower and upper data limit

Items for printing

Data; test times, largest force value, average value

Item for display

Test value; peak value; breaking value and elongation

Display

LCD

Motor

AC motor

Control system

Electronic

Weight

80kg

Standard Accessories

1 Sensor; A pair of tensile fixture; a pair of universal functional fixture;

operating manual

Power

220V/50HZ



5.Picture

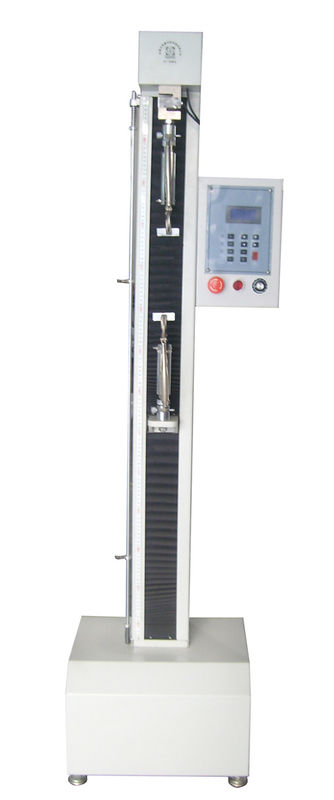

                                          Mini Economical Tensile Testing Equipment , ASTM / JIS Tensile Test Machine 0
