Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-A501

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Max. Force::	500 Kg/1000KG	Motor::	Panasonic Servo Motor
Test Speed::	10+/-3mm/min (1-300mm/min)	Test Space::	600×800×800mm(can Be Customized)
Report Output:	Mini-printer, Thermal Printing	Data Display:	Load, Displacement, Speed
High Light:	paper tensile strength tester , paper testing instruments

Computer Servo Carton Compressive Tester/Paper Box Compression Test Machine

About the machine:

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.

Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

Specifications:

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Item	Description
Max. Force	500 kg/1000KG
Load cell	1 load cell
Control system	Microcomputer control, button type
Motor	AC motor, guild rod
Force reading	kgf, Ibf, N etc
Load cell Resolution	1/100,000
Load Precision	within ±0.5%
Parallelism of Platens	Parallel within ±5mm
Effective test area	600×800×800mm
Test speed	10 ±3mm/min
Report output	Mini-printer, thermal printing
Data display	Load, displacement, speed
Safety features	E-Stop Over-load protection Upper and lower limit switches

Features:

1. ASTM-D642 Automatic Paper Carton Compression Testing Equipment Using a single-screen operation; do not need to switch the screen;

2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.

11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

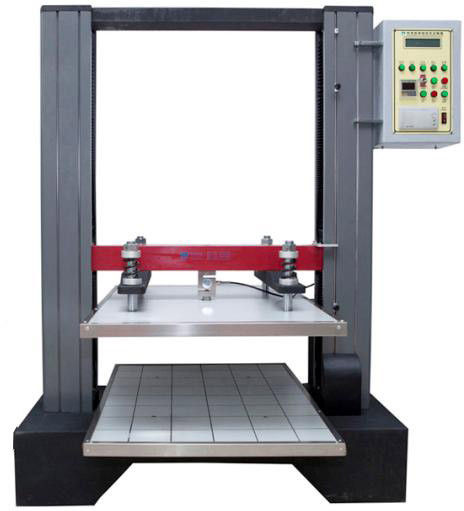

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester 0
