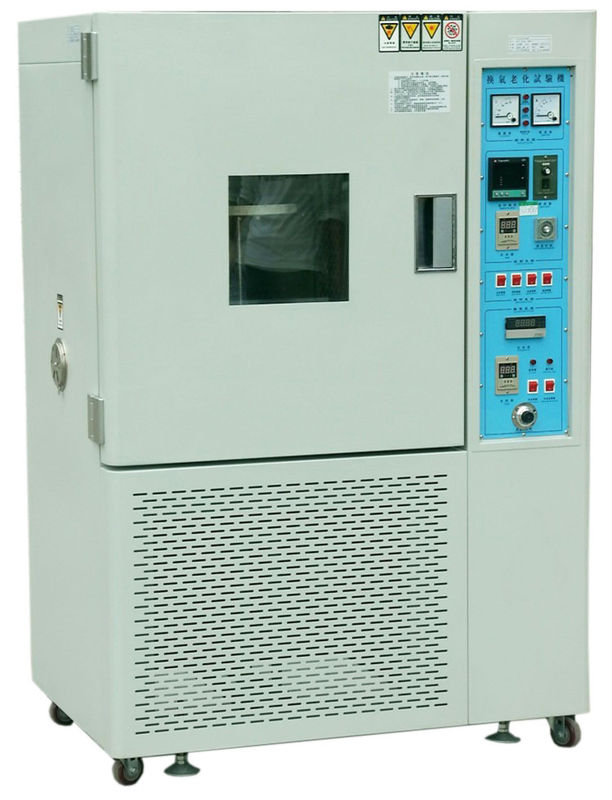

150L Air Ventilation Aging Environmental Test Equipment With timing function

150L Air Ventilation Aging Environmental Test Equipment With timing function

  • 150L Air Ventilation Aging Environmental Test Equipment With timing function
  • 150L Air Ventilation Aging Environmental Test Equipment With timing function
150L Air Ventilation Aging Environmental Test Equipment With timing function
Product Details:
Place of Origin: China
Brand Name: LIYI
Certification: ISO
Model Number: LY-HQ150
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 2000~6000USD/set
Packaging Details: Plywood pallet case
Delivery Time: 15 working days
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Test Chamber Size: 150L, Or Customize Temperature Range: Normal Temperature + 10 °C ~ 200 °C
Controller Type: PLC Or PID Rate Of Work: 6KW
High Light:

corrosion test chamber

,

thermal shock chambers

150L Air Ventilation Aging Environmental Test Equipment With timing function





      Air Ventilation Aging Test Chamber is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.



Features:

1. No reaction are shake handshandle, simple operation.
2. With timing function, the temperature control is accurate and reliable.
3. By using high temperature protection intelligent program microcomputer controller.
4. Use a multi-fin, centrifugal level vertical heat exchange circulation system, air change rate can be adjusted to the desire rate.
5. Heating mode for nickel chrome alloy type heating, heating up fast, uniform temperature distribution.
6. Adopt the Imported stainless steel plate.
7. High-temperature visual inspection system



Standards:

        UL1581sect420. 9,ASTM D5374,ASTM D5423  ASTM - D2436, CNS3556, CNS742, JIS7212, JIS

B7757.



Specifications:

 Test chamber size  50 cm (W) x50 cm (D) x 60 cm (H)
 Overoll size:  120 cm (W) x 65 cm(D)  x 134 cm (H)
 Power supply:  AC380V three phase four wire system
 Power:   6.0 KW
 Temperature range:   normal temperature + 10 °C ~ 200 °C
 Control precision  plus or minus 0.5 °C
 Analytical precision:  0.1 °C
 Distribution error:  plus or minus 2.5 °C
Heating time:  from room temperature to 200 °C, about 40 minutes.



Structure of the machine and material:
1. Inner carton size: 50 cm (W) x50 cm (D) x 60 cm (H)
2, carton size: 120 cm (W) x 65 cm(D)  x 134 cm (H)
3, in case material: SUS# 304 stainless steel, carton: the lacquer that bake.
4, heat preservation material: 80 mm thick high-density rock wool.
5, heater: spiral tubular heater set: 380 v 6.0 KW
6, box for five layer structure: the outer electrostatic paint steel plate, insulation high-density rock wool on the second floor,
Three layers at high temperature electrolysis board, four layers of air ventilation and heating tube layer, five layer for the stainless steel plate.
7 accessory equipment
7.1, no fuse switch
7.2  overtemperature protection
7.3, all kinds of action of light
7.4, back wheel and a set of rotary motors. (back to the guy detachable, of 8 ~ 10 RPM)



Using conditions:
1, power supply, three-phase four-wire 380 v AC 50 Hz
2, environmental temperature: 5 ~ 35 °C
3, environmental humidity: 85% RH or less



150L Air Ventilation Aging Environmental Test Equipment With timing function 0150L Air Ventilation Aging Environmental Test Equipment With timing function 1
