PLC Touch Screen Environmental Test Chamber

PLC Touch Screen Environmental Test Chamber

    • PLC Touch Screen Environmental Test Chamber
    • PLC Touch Screen Environmental Test Chamber
  • PLC Touch Screen Environmental Test Chamber

    Product Details:

    Place of Origin: China
    Brand Name: LIYI
    Certification: ISO 9001: 2008
    Model Number: LY-XD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Standard Export Wooden Case
    Delivery Time: Within 15 days after receiving the payment
    Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability: 10 piece/month
    Contact Now
    Detailed Product Description
    Material: Inner Stainless Steel Wavelength Range: 300-800nm
    Temperature Range: RT+10℃~70℃ Test Chamber Size: All Size Can Customize
    Temperature Deviation: ±0.5℃ Temperature Uniformity: ±2℃

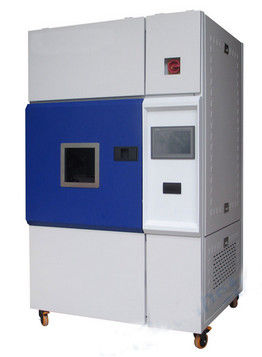

    PLC Touch Screen Customized Xenon Lamp Weathering Resistance Test Chamber for Paint



          This machine is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of  polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving  existing materials, or assessment of change in material composition;





    Corresponding standard:
    Textile: GB/T8430 GB/T12831 GB/T14576 GB/T8427 GB/T1189 GB/T9344 GB 150.7 GB/T16422.1
    GB/T1865 GB/T2423.24.


    Wood-based panel: AATCCTM16 ASTMG26 ASTM D2565 ASTMD4459 ASTM D6695 ASTM G155
    SAE J1885 SAE J2412 SAE J2212 SAE J1960 SAE J2527 AATCC169;



    Automotive interior: ISO4892 ISO03917 ISO11341 ISO 4892-2;



    Leather: PV 1303 PV 3929 PV 3930 DVM 0067- MA HES D6601 NES M0135 TSL 0601G GMW3414
    EDS-T-7415 D47 1431.





    Applicable industries:
         This machine applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.





    Specifications:



    Model

    LY-XD150

    Test Chamber Size

    500×500×600mm(D*W*H)

    Test Chamber Volume

    150L

    Test

    Index

    Temperature range

    Room temperature+10°C~70°C     Resolution: 0.1 °C

    Temperature uniformity

    ≤2°C

    Temperature fluctuation

    ±0.5°C

    Temperature deviation

    ≤±2°C

    Heating speed

    5degree/Min

    Humidity range

    50%~98%

    Humidity uniformity

    ≤2°C

    Balckboard temperature

    range

    65°C~100°C±3°C

    Water spray period

    0min ~ 240 min interrupted adjustable

    Water spray time

    0min ~ 9999min continuously adjustable

    Water spray pressure

    3Kpa

    Water spray time

    0min ~ 99h adjustable

    Lamp nominal power

    2~6KW/1pcs

    Lamp life time

    Average life 1200~1600h(Consumable do not guarantee)

    Wavelength

    290-800nm



    Structure

    and

    material

    Structure

    The chamber mainly departed into test chamber, electronic

    controlling cabinet and machinery chamber 3 parts.

    The left side is test chamber, single door from right to left.

    Right side is electronic controlling cabinet, there are temperature

    controller, switches, error indicator on the controlling panel.

    Machinery chamber is right beside the test chamber, contain

    filter, solenoid valve and other compenents.

    Sheating Material

    Painted steel plate

    Inner chamber material

    SUS304 stainless steel, corrosion resisting, easy cleaning and

    beautiful

    Heat preservation material

    Polyurethane rigid foam

    Inerlayer

    1 layler of SUS304 stainless steel sample frame, fluctuate

    distance is adjustable

    Test hole

    50mm test hole on the left wall with soft inside plug and sealed

    cover

    Door

    The single open the door, door and door design around the

    automatic add hotline, in different work conditions to be

    automatic operation, ensure the equipment in low temperature

    environment gate not gel and not frost





    PLC Touch Screen Environmental Test Chamber
