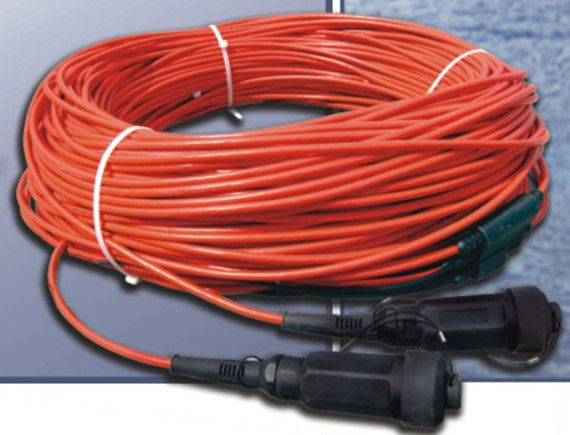

Good performance Perfect damping Geophysical Cable for petroleum exploration

Product Details:

Place of Origin:	China
Brand Name:	GUANGDA
Model Number:	According to the specifications

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Price:	negotiation
Packaging Details:	Carton (the size is determined by the number of purchases)
Delivery Time:	The decision by the purchase quantity, generally for 5 days after receipt of payment
Payment Terms:	FOB
Supply Ability:	10000

Contact Now

Detailed Product Description

High Light:

Telemetry Cable

Geophysical Cable Specification of land Cable for ARAM/ARIES system

Application:

petroleum exploration

Specifications :

2x26(.035)/2xcom/4x28GM-1

1.	Component	2TP, 4GP,2 COM,1P ,1 strengthen line
2.	Operating temperature range	-45 deg.a to+70deg.c
3.	Storage temperature range	-55 deg.a to+85deg.c
4.	Flexibility	A circular loop 12 cm inner diameter will be Squash by at least 1.05cm when submitted to a radical force of 5 N.
5.	Cylindricity	The maximum difference between any diameters measured on any section of 50mm in length do not exceed 0.3mm
6.	Maximum diameter	8.6+/-0.1mm
7.	Outer Jacket material	Polyurethane (PU)
8.	Jacket thickness MIN	1.4mm
9.	Max length	440m
10.	Colour	TBD(Orange,Blue,Orange red)
11.	Anti-draught Strength	1450 N
12.	Water proof	TBD
	Transmission Pairs
13.	Conductor	AWG26Magnetic
14.	DCR	280ohms+/-1.5
15.	Attenuation	<3.83dB/100m 3MHz
16.	Impedance measured on 100m	116666 6+/-13OHMS
17	capacitance	4.53nF
	Analog pairs
15.	Conductor	AWG28magnetic
16.	DCR	480Ohms+/-1.5
17.	capacitance	4.01nF
