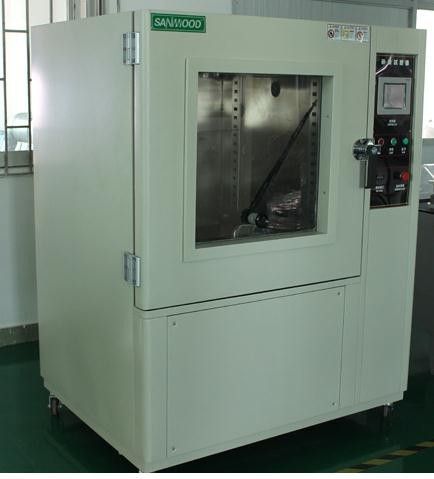

Sand And Dust Testing Laboratory Testing Machine , ISO Certificated

Sand And Dust Testing Laboratory Testing Machine , ISO Certificated

  • Sand And Dust Testing Laboratory Testing Machine  , ISO Certificated
  • Sand And Dust Testing Laboratory Testing Machine  , ISO Certificated
  • Sand And Dust Testing Laboratory Testing Machine  , ISO Certificated
  • Sand And Dust Testing Laboratory Testing Machine  , ISO Certificated
  • Sand And Dust Testing Laboratory Testing Machine  , ISO Certificated
Sand And Dust Testing Laboratory Testing Machine  , ISO Certificated
Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-E706
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month
Contact Now
Detailed Product Description
Usage: Sand And Dust Testing Chamber External Size: 170 * 150 * 190cm (approx.)
Inner Chamber Size: 120 * 120 * 120cm Air Pressure: 86~106kpa
Studio Temperature: RT~60'C, Adjustable Powder Type: Talcum Powder
Aspirator Flowing Quantity: 0~6L/min Pressure Tolerance: 0~2kpa
Testing Time: 0~999h88m99s, Adjustable Blower: Centrifugal Fan
Blowing Dust Cycle: Interval Control, Adjustable Door Material: Tempering Glass
Control Interface: LCD Touch Screen Weight: 400kg
Power Supply: AC380V, 50/60Hz, Three Phase Chamber Material: SUS#304 Stainless Steel
High Light:

Environmental Testing Equipment

,

Climatic Test Chambers

Sand And Dust Testing Laboratory Testing Machine , ISO Certificated



1.Product Description:

ISO certificated LED Light Sand and Dust Environmental Test Chamber is mainly and widely used to test products sealing and dust resistance in labs of many fields, like Electrical, electronic, automobile, motorcycle and sealing products/parts manufacturing industries.





2.Main Technical Parameters

Item

Specification

Inner chamber size

120 * 120 * 120cm

External size

170 * 150 * 190cm (approx.)

Air pressure

86~106kpa

Studio temperature

RT~60'C, adjustable

Amount of talcum powder

2kg per cubic meter of the test chamber volume

Can not have been used for more than 20 tests

Powder type

Talcum powder

Aspirator flowing quantity

0~6L/min

Pressure tolerance

0~2kpa

Metal net size

Wire diameter 50um, width of a gap between wires 75um

Testing time

0~999h88m99s, adjustable

Blower

Centrifugal fan

Blowing dust cycle

Interval control, adjustable

Chamber material

SUS#304 stainless steel

Door material

Tempering glass

Control interface

LCD touch screen

Vacuum system

Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump

Weight

400kg

Power supply

AC380V, 50/60Hz, three phase





3.Chamber Structure:

. Chamber material: SUS#304 stainless steel;

. Transparent window is convenient to observe specimen during testing;

. Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

. Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.





4.Features:

. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.


. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.


. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.


. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.


. Test with 50mm diameter holes for the external test power line or signal line.





5.Image:



thermal shock chamber





 Haida IPX1 - IPX8 Rain Test Chamber.pdf





Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.





Our Services



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

1. Pre-service

24 Hours online service for your consult.

Help choose right model,and a series of service,person,advise.

2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan

4,Commitment:

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

5,Good Packaging:

Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
