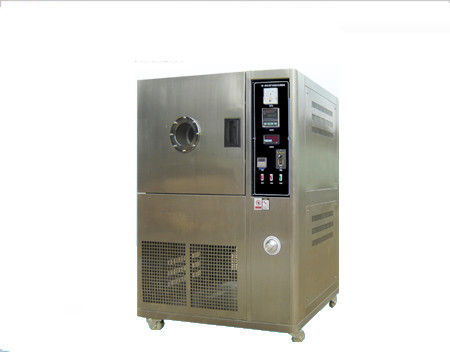

PID Control Air Ventilation Aging Environmental Test Chamber in Stainless Steel

PID Control Air Ventilation Aging Environmental Test Chamber in Stainless Steel

  • PID Control Air Ventilation Aging Environmental Test Chamber in Stainless Steel
PID Control Air Ventilation Aging Environmental Test Chamber in Stainless Steel
Product Details:
Place of Origin: china
Brand Name: Haida
Certification: ISO9001: 2008, CE, ...
Model Number: HD-E701
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Usage: Aging Chamber Material: SUS#304 Stainless Steel
Power: Electronic Power Supply: AC220V, 50/60Hz, Single Phase
Temperature Range: RT - 200'C Resolution: 0.1'C
Accuracy: 0.5'C Rotation: 10-200times / Hour
Control Method: PID Control Warranty: One Year
Highlight:

Climatic Test Chambers

PID Control Air Ventilation Aging Environmental Test Chamber in Stainless Steel



Product introduction:

Air ventilation aging oven test machine is used for studying and testing rubber and plastic materials. By using circular heating method, the material is heated in 70 degree C all day long, which is equivalent to be exposed in atmosphere environment for six month period. This machine equips motor driven rotary plate and its circular heating function makes sure that the heat is distributed evenly.



Main feature:
The oven used to study the rubber that is heated under the rotary mode in a fixed period. Tested 1day at 70 °C, theoretically equivalent to 6 months exposed to the outside atmosphere. The oven is equipped with motor·driven rotary disk, hotair circulation system that ensure uniform distribution of temperature.





Corresponding standard:
Accord with ASTM D5423-9(R2005)(Ⅱ-Type oven)and ASTMD 5374-93(2005) UL-1581,GB,VDE,JIS,IEC




Main parameters:

Testing space About 45×50×45cm
Temperature RT~200°C
accuracy 0.5°C
resolution 0.1°C
Rotation 0~10 or 10~200 time/H
Ventilation adjusted Auto-tuning type
Ventilation system Using voltage regulator to change the volume of air, convenient to adjust
Built-in circulating air system ensure the temperature uniformly:1%( count at the highest temperature)
Material SUS#304 stainless steel
Protector Over-temperature breaker



Applicable industries:
The aging tank used to test the material heat·resisting for polymer materials (plastics, plastic) and electrical insulation materials,such as: wire and cable sheathing, heat·shrinkable tubing, rubber or PVC materials.
