Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | HAIDA |
Certification: | ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC |
Model Number: | HD-501-600 |
Power: | Electronic |
---|---|
Usage: | Paper Testing Instrument |
Design criteria: | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
Port: | Shenzhen & HK & Shanghai |
Highlight: | compression testing machine |
---|
1.Carton compression tester
2.The usage
carton compression tester is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.
3.The main technical parameters are as follows :
Capacity (optional):1 T
Unit (switchable):Kg, Lb, N
Load Resolution:1/10,000
Load Accuracy: ≤0.5%
Test Space (L×W×H):600×800×800 mm
Speed of Compression:10 ± 3 mm/min
Report Items:Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure:AC Frequency Conversion Motor ( Taiwan);
Dimension (L×W×H):1090×800×1325 mm
Weight :Approx. 590 kg
Power:220V/ 50Hz

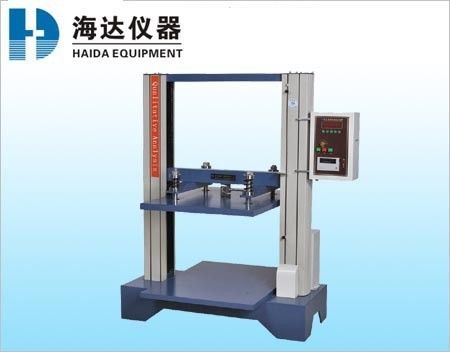

4.The pictures
